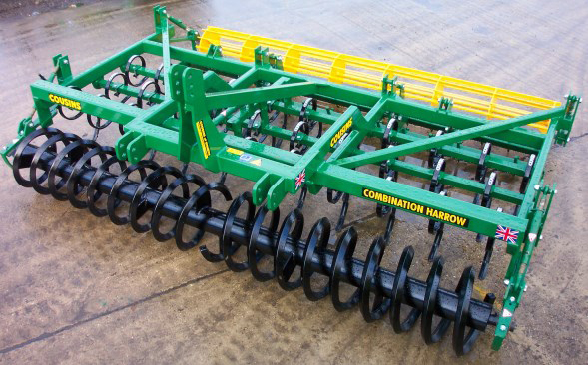

Combination Harrows

Introduced to produce a level seedbed in one or two passes, eliminating wheelings. Under many soil conditions the Combination Harrow will produce good results much faster than a Power Harrow, at less capital cost and much lower maintenance costs.

Available with crumblers or Spiroller Coils (solid or hollow) to suit each customer’s soil conditions. Comprises of a leading crumbler barrel (or coil), followed by three rows of ‘S’ tines, followed by 2 rows of angle-back harrow tines and a rear crumbler.

All components are adjustable to suit prevailing soil conditions. An optional road transport kit (206kg) is also available for the 3.5 and 4 metre models. Tines are 12mm thick heavy duty ‘S’ tines. Crumblers fitted are 350mm (14″) diameter. Coils fitted are 450mm (18″) diameter (solid or hollow). Tyre Rollers fitted are 450mm (18″) diameter.

		Rigid				Hydraulic Folding
Model		2.5m	3m	3.5m	4m	5m	6m	7m	8m
2 Crumbler	kg	720	860	1000	1180	1590	1880	2170	2460
1 Crumbler 1 Tyre Roller	kg	830	990	1150	1360	1810	2140	2480	2810
1 Crumbler 1 Hollow Coil	kg	750	920	1090	1260	1700	2040	2380	2720
1 Crumbler 1 Solid Coil	kg	900	1100	1300	1500	2000	2400	2800	3200
2 Hollow Coils	kg	880	1050	1220	1430	1910	2260	2610	2960
1 Solid Coil 1 Hollow Coil	kg	1030	1240	1450	1720	2210	2620	3030	3440
1 Tyre Roller 1 Hollow Coil	kg	920	1100	1290	1540	1980	2340	2710	3070
1 Tyre Roller 1 Solid Coil	kg	1060	1280	1500	1780	2280	2700	3130	3550
2 Tyre Roller	kg	950	1140	1340	1590	2050	2430	2810	3180
No. of 22mm tines		26	31	36	41	51	61	71	81
No of 'S' tines		26	31	36	41	51	61	71	81
Approx HP Required		60	70	80	90	100+	120+	140+	160+
Transport Width		2.7m	2.7m	2.7m	2.7m	3m	3m	3m	3m

Optional Road Transport Kit for 3.5 & 4m models (206kg) available

All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
