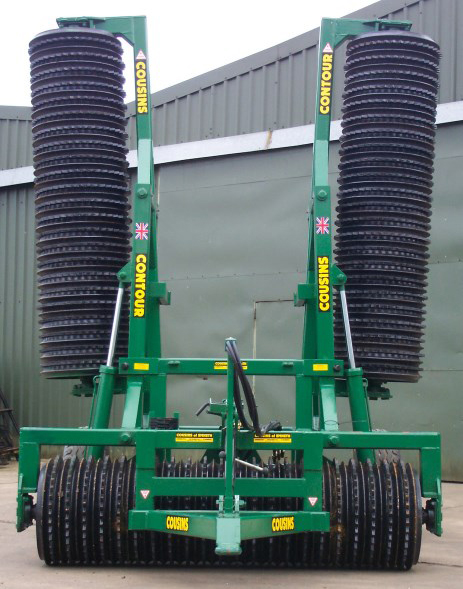

ContourTM Cambridge Rolls (3 bank)
All models are fully trailed and hydraulically folding. Available in 21′, 24′, 27′ or 30′ working width. Rings can be 20″, 22″, 24″, 26″, 30″ diameter Plain Cambridge or 20”, 22″, 24″ with notched Breaker segments. All shafts and bearings are 65mm (2 1/2″).
Rear mounted light board as standard. Wings pivot centrally to give improved ground following.
Articulated models incorporate a unique patented ball joint & transport system which enables the front and rear gangs to operate independently of each other, eliminating pressure points across the rolls, reducing scuffing when turning corners and enabling the machine to be used in tight spaces. This also reduces excess wear on any particular point.
Standard Model Prices
(for Articulated Models add Ball Joint Price)
| Ring Type | Ring Size | 21' (6.4m) | 24' (7.32m) | 27' (8.23m) | 30' (9.14m) | |
|---|---|---|---|---|---|---|
| Cambridge Rings | 20" | Tonnes | 3.31 | 3.76 | 4.15 | 4.53 |
| 22" | Tonnes | 3.44 | 3.91 | 4.32 | 4.75 | |
| 24" | Tonnes | 3.67 | 4.18 | 4.54 | 5 | |
| 26" | Tonnes | 4.11 | 4.61 | 5.1 | 5.63 | |
| 30" | Tonnes | 4.47 | 5.02 | |||
| Breaker Rings | 20" | Tonnes | 3.62 | 4.05 | 4.48 | 4.91 |
| 22" | Tonnes | 4.05 | 4.54 | 5.03 | 5.52 | |
| 24" | Tonnes | 4.34 | 4.87 | 5.4 | 5.93 | |
| Articulated Ball Joint (Optional Extra) | kg | 220 | 220 | 220 | 220 | |
| Springboard Levelling System (Optional Extra) | kg | 580 | 660 | 740 | ||
| Transport Width | ft | 8 | 9.7 | 10.3 | 11.5 | |
| m | 2.44 | 2.95 | 3.13 | 3.5 | ||
| Tyre Sizes | 260/70-15.3 x 10 ply | 300/80-15.3 x 14 ply | 400/60-15.5 x 14 ply | |||
Frames only to take Customer’s own Rings.
Folding Rolls Demonstration
Contour Cambridge Rolls leaflet (PDF)
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
