Cousins of Emneth Ltd

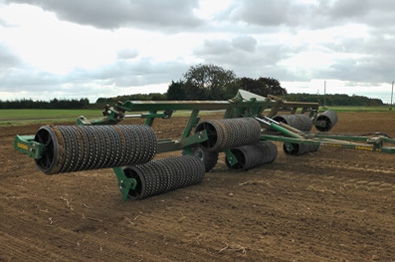

ContourTM HD HZ
The new ContourTM HD HZ Cambridge Rolls incorporate all the features required for successful rolling. With a horizontally folding frame, the heaviest weight per metre of our range, excellent ground following and a 3 year ring and axle warranty.
Features
- Excellent ground following
- Horizontal folding, gives good stability in transport position
- 7 sections reduces stress on bearings & axles
- Full range of ring options 22″, 24″, 26″
- Weight up to 10.3 tonnes for 12.4m working width
- Folding/unfolding fully operational from tractor cab
- Lights
- Optional Springboard Levelling Tines
- Optional brakes up to 10.4m, included 12.4m and up
- 3 year ring & axle warranty
| Ring Type | Size of Ring | 5 Section Models | 7 Section Models | |||||
|---|---|---|---|---|---|---|---|---|
| 8.4m | 9.4m | 10.4m | 12.4m | 15.4m | 16.4m | |||
| Cambridge Rings | 22" | kg | 5670 | 6170 | 6670 | 8730 | 10136 | 10854 |
| 24" | kg | 5800 | 6530 | 7230 | 9060 | 11570 | 12380 | |
| 26" | kg | 6362 | 7162 | 7962 | 9900 | 12243 | 13043 | |
| Breaker Rings | 22" | kg | 6293 | 6893 | 7493 | 9870 | 10540 | 11340 |
| 24" | kg | 6662 | 7362 | 8062 | 10322 | 12120 | 13400 | |
| Springboard add on available as optional extra | ||||||||
| Brakes Hydraulic type available as an optional extra | Inc. | Inc. | Inc. | |||||
| Tyre Sizes | 480/45-17 | 480/45-17 | 480/45-17 | 480/45-17 | 500/45-22.5 | 500/45-22.5 | ||
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
