ContourTM HZ - Horizontal Folding Rolls

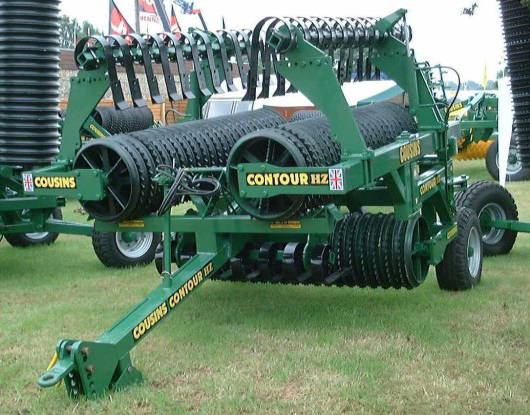

The Cousins ContourTM HZ is a heavy duty horizontally folding Cambridge roll. With its fully flexing, contouring wing sections this machine gives unbeatable ground following in all situations. Illustrated complete with optional SpringboardTM system.
- Horizontally Folding
- 3m Transport Width
- Plain or Breaker Rings
| Working Width | |||||
|---|---|---|---|---|---|
| Ring Type | Size of Ring | 6.3m | 7.3m | 8.3m | |
| Plain Rings | 20" | kg | 2920 | 3310 | 3700 |
| 22" | kg | 3300 | 3760 | 4220 | |
| 24" | kg | 3470 | 4200 | 4930 | |
| 26" | kg | 3910 | 4630 | 5350 | |
| Breaker Rings | 20" | kg | 3290 | 3960 | 4630 |
| 22" | kg | 3660 | 4400 | 5140 | |
| 24" | kg | 4140 | 4720 | 5300 | |
| SpringboardTM available as an optional extra | |||||
| Tyre Sizes | 260/70-15.3 | 300/80-15.3 | 300/80-15.3 | ||
Folding Frames Only
(To take Customer’s own Rings)
“Contour” and “Sidewinder” Frames Only are available to take Customer’s own rings. Everything supplied (i.e. bearings, frame, new axles, assembly, spraying etc.) except the rings. We prefer the rings to be delivered to our works on pallets, so that we can build the machine and deliver ready for work.
Ring Sizes Restricted
We will be pleased to quote other sizes of frames not mentioned. (8.23m to 16.4m)
| Frame Type | 21' (6.4m) | 24' (7.32m) |
| Sidewinder | ||
| Contour HZ | ||
| Minimum Axle Size | 2" | 2 1/4" |
N.B. We do not guarantee axles on machines that use Customer’s rings. This is because old rollers used mainly 2″ (50mm) axles, whereas new Cousins’ rolls are supplied with 292″ (65mm) axles. However, we have supplied many machines using Customer’s own rings & few have given trouble. We recommend a minimum 2” axle for 21′ (6.4m) rolls & 24″ axle for 24 (7.32m) rolls.
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
