Disc Packer

This machine is designed to perform speedy primary or secondary cultivations, with two rows of individually mounted cutaway discs giving overall spacings of 125mm, followed by Razor Rings.

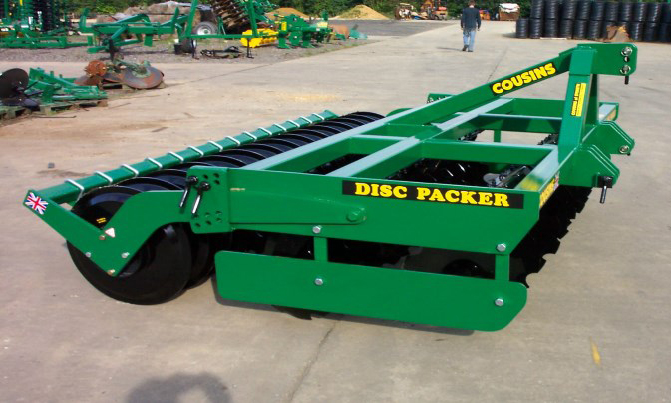

Linkage Mounted Models

Working Width (m)	No. of Rings	No. of Discs	Transport Width (m)	Weight (kg)
3.00	15	22	3.20	1830
4.00	20	28	4.20	2440

Disc Packer

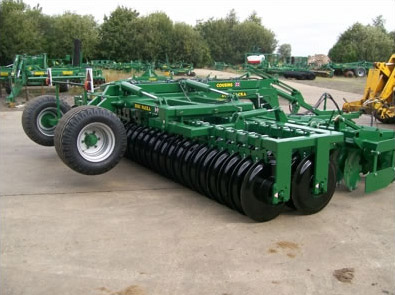

Fully Trailed Models

This model is based around the main frame and folding mechanism of our popular Type 28 Springboard Packa-Rolla. The two rows of individually mounted cutaway discs (510mm diameter) can be hydraulically adjusted on the move.

The depth control enables the machine to cope with varying soil conditions across the field. The double row of razor rings (650mm diameter) ensure intensive consolidation across the full working width, with rings at an effective spacing of 100mm.

Close scrapers are fitted to the rear row of rings.

Tyre size 400/60-15.5

Working Width (m)	No. of Rings	No. of Discs	Transport Width (m)	Weight (kg)
3.0 Rigid	30	24	3.2	3480
4.0 H/Fold	40	30	2.5	4640
6.5 H/Fold	66	50	2.8

Other sizes available, price on application.

All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
