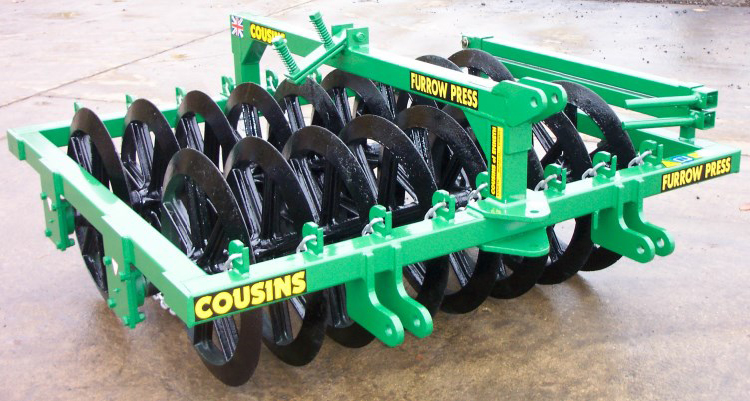

Furrow Presses

Cast Rings or Solid Coils

Furrow presses are available with razor rings offering the flexibility to match varying soil conditions.

They are an effective alternative to both broad profile cast rings which can prove excessively heavy and narrow profiles which cut clods on heavy soils but are liable to sink into lighter areas.
Each ‘razor ring’ has a flat angular profile enabling a clod cutting action with the leading edge, whilst the broad angular profile gives a firming and shaping effect. The shape is efficient and effective on varying soil types, leaving a continuous ridging profile and consistent consolidation across the working width. Razor rings simplify press maintenance as they cannot come loose on the axle, break or require removal for bearing replacement.

Manufactured using a unique process (patent pending), the razor ring is formed from two dished discs fitted face to face to form a press ring shape with a relatively sharp leading edge. The rings are then mounted onto a 275mm diameter continuous tubular axle to form a rigid structure. The whole assembly run on bearings (mounted on the outside) and fitted with adjustable close scrapers to keep the rings free from soil build-up.

Working Width			Furrow Press Rings		Solid	Coil
m	inches		30° HD	45°	18"	24"
1.3	51	kg	1025	1050	947	1000
1.5	59	kg	1145	1175	1049	1110
1.7	667	kg	1270	1300	1139	1207
1.9	75	kg	1370	1425	1238	1314
2.1	83	kg	1510	1550	1320	1421
3.3	91	kg	1630	1675	1419	1528
2.5	98	kg	1750	1800	1518	1635
2.7	106	kg	1870	1925	1617	1742
2.9	114	kg	1990	2050	1716	1849
3.1	122	kg	2110	2175	1815	1956
3.3	130	kg	2230	2300	1914	2063
3.5	138	kg	2360	2425	2013	2170

Plough Arms

To fit shear bolt ploughs up to ‘5’ furrows
To fit shear bolt ploughs over ‘5’ furrows
Hydraulic release arm:
Up to ‘5’ furrow shear bolt
Over ‘5’ furrow shear bolt

Arms will not fit ploughs that turn under. Arms may not fit some ploughs.
When enquiring always quote your plough details
(i.e. make, model, size, age etc.)

Razor Ring option also available

All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
