Cousins of Emneth Ltd

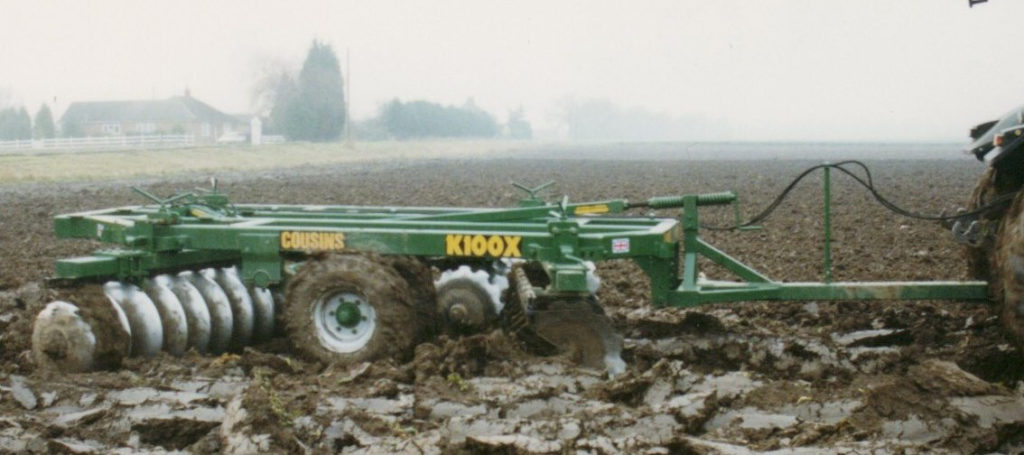

K100X Disc Harrows
Features
- 100kg per Disc
- 26″ (660mm) ~ Disc Blades
- Cutaway front – Plain rear
- Disc Spacing 9/4″ (235mm)
- 8 Double Taper Bearings
- 40mm Square High Tensile Axles
- Adjustable Disc Scrapers
- Level Discs on rear gangs (2 off)
- Gang angle adjustment by screw type locking mechanism & roller
- Weight Transfer – Extra weight from front onto back gangs (adj.)
- Bearings guards
- Depth control by positive pin stop
- 2 Tyres 400/60-15.5 x 14 ply
Options
- Rear Drawbar
- Hydraulic pipes to rear for Packa-Rolla
| Working Width (m) | Transport Width (m) | Weight (kg) | No. of discs inc. 2 Levelling Discs |
|---|---|---|---|
| 3.6 | 2.85 | 3200 | 34 |
| 4 | 2.85 | 3600 | 38 |
| 4.4 | 2.85 | 4400 | 42 |
Rear Drawbar … £460
Hydraulic Pipes to rear (2) … £280
Hydraulic Pipes to rear (4) … £510
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
