Cousins of Emneth Ltd

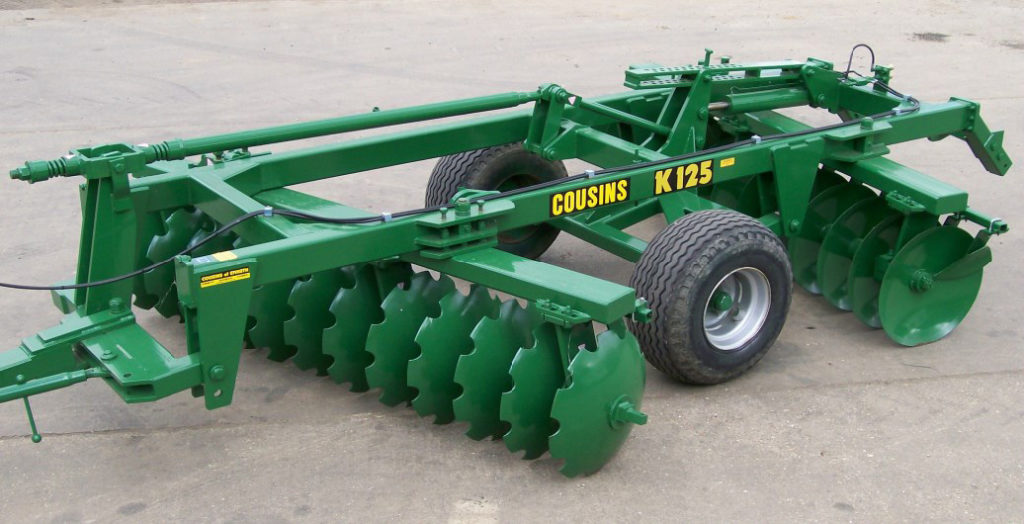

K125 Disc Harrows - (Trailed Offset)
- Disc Spacings 9.8” (250mm)
- Fully Trailed Offset Discs
- Adjustable Mouldboard-type scrapers
- Level disc included on rear gang trailing edge
- Rear attachment strong enough to tow packers etc.
- Gang angle adjustment by spring loading locking dogs and rollers
- Weight transfer enables extra weight to be moved from front to back gang
- Tyre size: 400/60-15.5 x 14 ply flotation
- Depth control is efficient with flotation tyres being set with a positive & easily adjustable pin system
- 26″ (660mm) & 28″ (710mm) Dia.
- 125kg per Disc
- Cutaway & Plain Discs
- Double Taper Bearings 8 on Rigid 12 Models
- 40mm sq. high tensile axles
- Cast steel disc spools (spacers)
- Main drawbar adjustable for height & offset
- Rear hydraulic services, double acting quick release outlets
- Parallel lift means frame lifts level for transport
- Torsion compensation on front ‘Gang to Frame’ helps even penetration
- Bearing guards fitted as standard
Rigid Models
| Min HP Req. | Working Width | No. of Discs | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Inc. Level Disc | Exc. Level Disc | Inc. | Exc. | kg approx | 26" | 28" | |||
| m | ft | m | ft | Level Disc | |||||
| 95 | 2.75 | 9 | 2.5 | 8.2 | 21 | 20 | 2500 | √ | √ |
| 115 | 3.25 | 10.66 | 3 | 9.84 | 25 | 24 | 3000 | √ | √ |
| 130 | 3.75 | 12.3 | 3.5 | 11.48 | 29 | 28 | 3500 | √ | √ |
| 150 | 4.25 | 13.94 | 4 | 13.12 | 33 | 32 | 4000 | √ | √ |
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
