Norfolk Cultivator

The ‘Norfolk’ Cultivator is a heavy duty tined, general purpose cultivator. Uses include primary cultivations direct into stubble etc. and deep loosening of ploughed work in the Autumn. It has also been used successfully in the Spring to loosen and aerate the ground prior to forming beds and de-stoning for potatoes. It is also ideal for cross dragging destoned potato land after harvest to remix the stones and help prepare a seedbed for the following crop.

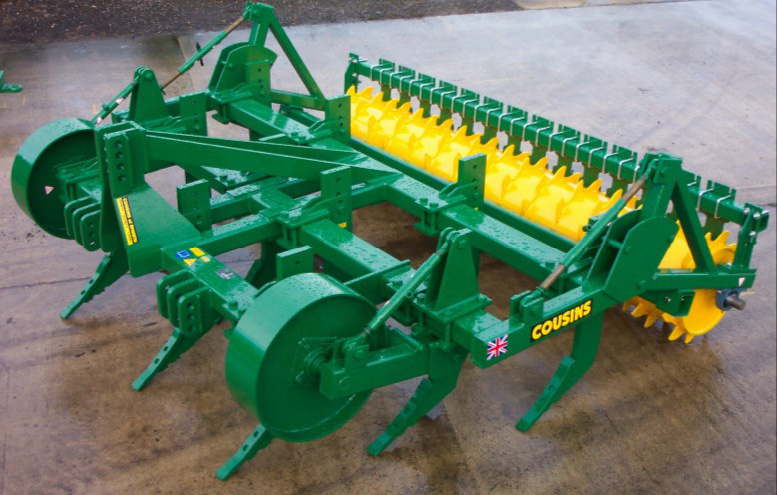

The machine comprises of a 3 bar frame made from 150 x 100 x 10mm box section and fitted with heavy duty rigid steel tines. Each tine is held to the frame in a moveable bracket. The tine is shear bolt protected. Points are reversible. A pair of 610mm x 200mm (24″ x 8”) steel depth wheels are fitted as standard.

The heavy build of this machine, along with the correct angle of point penetration and the upright nature of the tine stem ensure a consistent working depth, with good soil mixing and breaking effect. Increased clod reduction and moisture retention is achieved by adding the optional rear attachment Razor Rings (@ 200mm) Toothed Packer, 24″ Crumbler Barrel or 24″ Solid Coil. Cat II & III linkage standard. Special linkage settings on request.

Working	Frame Only		Razor Ring	24" Toothed Packer	24" Solid Coil	24" Crumbler
Width	kg	Tine	kg	kg	kg	kg
3m Rigid	1160	11	775	570	560	390
4m Rigid	1150	13	1010	760	728	520
4m Folding	2700	16	1080	760	870	660
4.5m Folding	2900	18	1200	855	960	725
5m Folding	3100	20	1315	950	1050	990
5.5m Folding	3300	24	1430	1045	1140	855
6m Folding	3500	24	1550	1440	1230	920

Special Feature: Our successful Level Lift Subsoiler Legs can be fitted to this frame and used in conjunction with the
Cultivator Tines, to make this a truly versatile implement.

Level Lift Subsoiler Legs c/w brackets
Norfolk Cultivator Tine c/e brackets

All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
