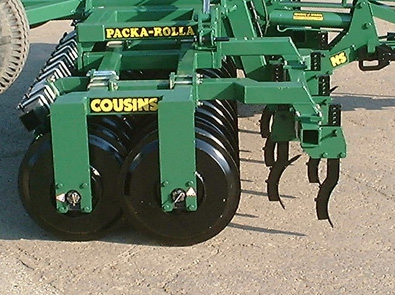

Packa-Rolla

Packa-Rollas (Double or Single Row) are designed to work direct with Disc Harrows. They comprise of 1 or 2 rows of 650mm (26″) Razor Rings or 710mm (28″) diameter x 450° cast press rings, with the option of also having leading tines. Transport Width 2.5m. Tyre size 400/60-15.5.

Double Row

Centre Folding Models
Available in 20 cm increments between 3.4 and 6.6 metres with Razor Rings or 45° Rings

	3.4m	3.6m	3.8m	4m	4.2m	4.4m	4.6m	4.8m	5m	5.2m	5.4m	5.6m	5.8m	6m	6.2m	6.4m	6.6m
45° Rings	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
Razor Rings	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√

Single Row

Centre Folding Models

	3.35m	3.65m	3.95m	4.25m	4.55m	4.85m	5.15m	5.45m	5.75m	6.05m	6.35m	6.65m
45° Rings	√	√	√	√	√	√	√	√	√	√	√	√
Razor Rings	√	√	√	√	√	√	√	√	√	√	√	√

Leading Tines (optional) are individually adjustable for depth and pitch so that tines can be set to suit soil conditions and also to work deeper in tractor wheels. The tines are staggered in 2 rows giving 300mm spacings.

Optional rigid leading tines can be fitted for an additional cost per m.

Double Row

Rigid Models

	3m	3.2m	3.4m	3.6m
Razor Rings	√	√	√	√
45° Rings	√	√	√	√

Ring spacings 200mm (effectively 100mm spacings). Scrapers fitted between back row of rings.

Single Row

Rigid Models

	3m	3.3m	3.6m	3.9m
Razor Rings	√	√	√	√
45° Rings	√	√	√	√

Available in 30cm increments between 3 and 3.9 metres wide with Razor Rings or 45° Rings

Rings spacings 150mm (6″). Scraper fitted as standard.

For models with levelling boards see the single type 28 and double type 28

All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
