Cousins of Emneth Ltd

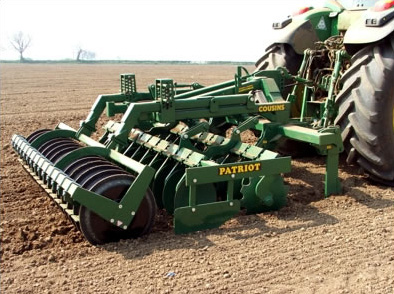

Patriot - Rigid Models
Tines + Discs + Press
Versatile Combination Cultivator
Tines up front
Rigid loosening tines set at 600mm centres can work between 150mm (6”) and 400mm (16″) deep as required. Depth is controlled by pin adjustment on the rear press. QUICKFOOTTM, one piece with point, wing and shin assembly fixing as standard. Options – Our original Level LiftTM point, wing, shin system or quick foot light.
Discs following tines
Two rows of 500mm (20″) diameter disc blades are mounted on hubs with greasable taper roller bearing. Units are mounted individually on rubber suspension at 250mm (6″) centres. The disc sub-frame assembly is quickly adjusted hydraulically for working depth on the move. Further adjustment by turnbuckle enables the disc sub-frame to be tipped for and aft to vary the bias to balance tilling action.
Press Rings at the back
Patented Razor rings (650mm diameter) control the overall depth of tillage and leaves a firmed “weather proof” corrugated finish. Standard spacing 200mm (8”), optional spacing 150mm (6″). Further options 610mm (24″) toothed packer or 610mm (24″) coil (50mm x 50mm x 6mm box section). Pin adjustment for depth. Adjustable scrapers.
| Working Width (m) | Transport Width (m) | Weight (kg) | No. of Tines | No. of Discs |
|---|---|---|---|---|
| 3m Rigid model | 3 | 2600 | 5 | 22 |
| 3.6m Rigid model | 3.6 | 3100 | 6 | 28 |
Please note discount is limited on the Patriot.
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
