Cousins of Emneth Ltd

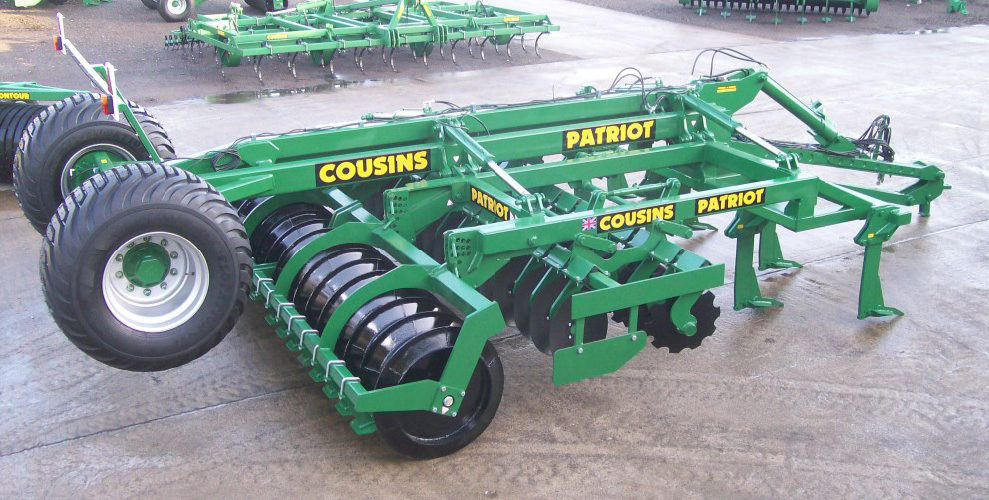

Patriot - Trailed Folding Models
Tines + Discs + Press
Versatile Combination Cultivator
Features
- Subsoil Legs set at 600mm centres
- QuickfootTM one piece points Or original Level LiftTM System
- 2 rows 500mm diameter discs
- Self levelling drawbar
- Discs adjusted Hydraulically ‘on the go’
- Patented 810mm (32″) diameter HL Razor Ring
- 3m Road transport width
- Depth set ‘flip over’ washers on front ram Pin adjustment on Razor Rings
- 10 stub braked wheel assemblies
- 600/55-22.5 Flotation tyres
- Lights fitted as standard
| Working Width (m) | Transport Width (m) | Weight (kg) | No. of Tines | No. of Discs |
|---|---|---|---|---|
| 4.2 | 3.0 | 7 | 34 | |
| 5.6 | 3.0 | 9 | 46 |
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
