Razor Rings

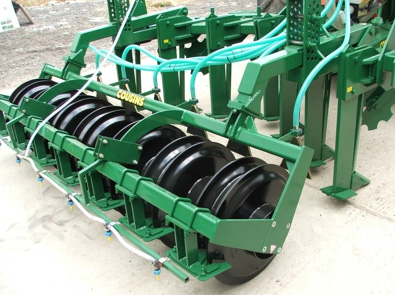

Razor Rings have been developed as an alternative to cast press rings and the usual rear attachments found on heavy duty cultivators.
Manufactured using a unique process, the Razor Ring is formed from two dished discs fitted face to face to form a press ring type shape with a relatively sharp leading edge. The rings are then mounted onto a large diameter continuous tubular axle. The whole assembly runs on bearings, which are mounted on the outside. Adjustable close scrapers are fitted to clean between the rings.
Each Razor Ring has a flat angular profile enabling a clod cutting action with the leading edge, whilst the broader angular profile gives a firming and shaping effect.
The shape is efficient and effective on varying soil types making it a versatile cultivation tool. A continuous ridging profile to the soil is the result in most conditions with a consistent consolidation effect across the full machine working width.
- 650mm diameter rings
- Rings can not work loose
- No spokes
- Leaves a weather proofed corrugated finish
- 275mm diameter centre tube
- No intermediary bearings
- Solid and sturdy construction
| Razor Ring Spacings | ||
|---|---|---|
| m | 150mm | 200mm |
| 2.25 | √ | √ |
| 2.5 | √ | √ |
| 2.75 | √ | √ |
| 3 | √ | √ |
| 3.25 | √ | √ |
| 3.5 | √ | √ |
| 3.75 | √ | √ |
| 4 | √ | √ |
| 4.25 | √ | √ |
| kg per m | 270 | 235 |
Prices are for Rings welded onto central shaft. Includes scrapers & scraper bar. Fixing kit available at extra cost.

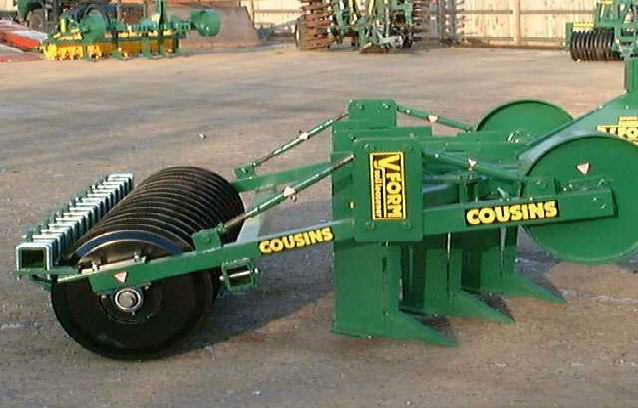

V Form Soil Looseners
When fitted as a rear attachment the rings effectively control the working depth, giving the cultivating effect of a heavier cast ring without excess weight. The suction from the subsoil legs is dispersed onto the rings thereby intensifying the cultivation effect.
Springboard Presses
Maintenance is simplified when presses are fitted with Razor Rings. Rings can not come loose on the axle, will not break and rings do not have to be removed from the axle to replace bearings.

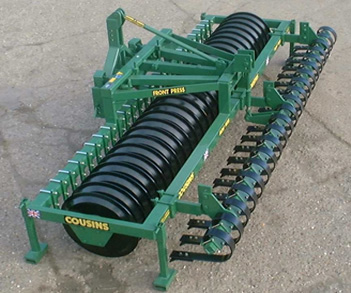

Front Presses
Choosing a ring type is a problem on a farm with varying soil types. Broad profile cast rings can be excessively heavy and narrow profiles chosen to cut clods on heavy soils can sink excessively on lighter areas. Razor Rings offer a viable solution.

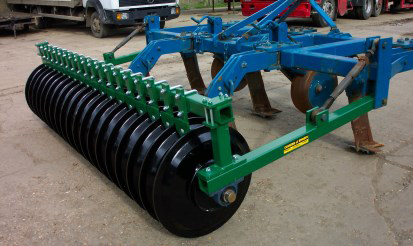

Enhance Existing Machines
We are now pleased to offer retro-fitting to Cousins and other makes of equipment. We do not supply fitting kits for other
manufacturer’s machines (Razor Rings & Scrapers only). Prices on application.
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
