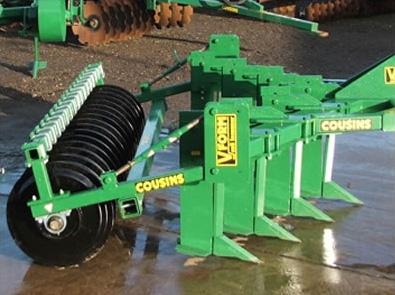

V FormTM Plus - Heavy Duty
Effective configuration of offset tines is proven much more efficient than standard single beam alternatives. The leading tine disturbs the soil for the following tines, achieving a complete movement of soil across the working width of the frame, intensifying the cultivation. The rear attachment disperses the suction from the tines into useful energy for crushing, levelling and depth control. The result is elimination of large clods, good moisture retention and a level surface finish.
All V-Form models can be fitted with Cousins original level lift subsoil legs or ‘Quickfoot’ legs with 1 bolt fixing for minimum down time. A choice of rear attachments is available (please consult Cousins).
ALL MODELS NOW V-FORM PLUS SPEC
Features
- Cat 2 & 3 linkage
- 200 x 100 (8″ x 4″) Toolbar
- 200 x 25 (8” x 1″) Level LiftTM’ legs
- Max. working depth 510mm (20″)
- Centre tine bracket will take mole leg
Rear Attachments
- Razor Rings – 200mm Centres (also available @ 150mm)
- Toothed Packer
- Crumbler Barrel
- Solid Coil
Options
- 24” depth wheels
- No rear attachment
- Disc assemblies
| Model | No. Tines | Razor Rings | Leg Zone Presses | Toothed Packer | Crumbler Barrel | Solid Coil 24" |
|---|---|---|---|---|---|---|
| kg | kg | kg | kg | kg | ||
| 2.5m | 3 | 1487 | 1384 | 1340 | 1417 | |
| 5 | 1763 | 1660 | 1542 | 1693 | ||
| 3m | 3 | 1671 | 1834 | 1771 | 1858 | |
| 5 | 1873 | 1737 | 2036 | 1973 | 2060 | |
| 7 | 2075 | 2238 | 2175 | 2262 | ||
| 3.5m | 5 | 1979 | 2004 | 1931 | 2023 | |
| 6 | 2020 | 2105 | 2032 | 2124 | ||
| 7 | 2181 | 2206 | 2133 | 2225 | ||
| 4m | 5 | 2176 | 2375 | 2293 | 2390 | |
| 7 | 2378 | 2576 | 2494 | 2591 | ||
| 9 | 2580 | 2708 | 2696 | 2793 |
For Micro Wing option is available at a reduced cost per tine.
For Double Tine option available at an increased cost per tine.
Extra leg for above machine c/w bracket available
Disc assembly per leg available
Trailing kit available
24” depth wheels (pair) available
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
