V FormTM - Linkage Mounted Folding
Effective configuration of offset tines is proven much more efficient than standard single beam alternatives. The leading tine disturbs the soil for the following tines, achieving a complete movement of soil across the working width of the frame, intensifying the cultivation. The rear attachment disperses the suction from the tines into useful energy for crushing, levelling and depth control. The result is elimination of large clods, good moisture retention and a level surface finish.
All V-Form models can be fitted with Cousins original level lift subsoil legs or ‘Quickfoot’ legs with 1 bolt fixing for minimum down time. A choice of rear attachments is available (please consult us to discuss).

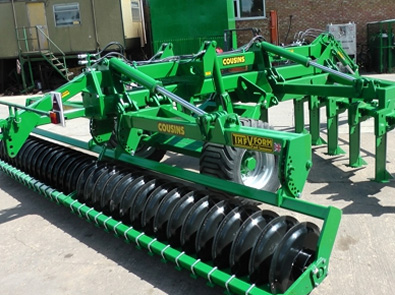

Linkage Mounted Folding
This model is based on our successful heavy-duty V Form models and provides a practical solution to the transport width problems normally associated with wider machines of this type. We are now able to offer machines up to 5.5m working width. Rear attachments can be Razor Rings (650mm dia.), 24″ dia. toothed packer, 24″ giant crumbler or 24″ solid coil. Transport width is 2.8m.
| c/w | ||||||
|---|---|---|---|---|---|---|
| Working Width | Approx. min HP | No. of Tines | Razor Rings | Toothed Packer | Crumbler | Solid Coil |
| 4.5 | 270+ | 5 | 3683kg | 3474kg | 3270kg | 3477kg |
| 7 | 3885kg | 3676kg | 3472kg | 3649kg | ||
| 5.00 | 300+ | 7 | 3956kg | 3720kg | 3456kg | 3685kg |
| 9 | 4158kg | 3922kg | 3658kg | 38847kg | ||
| 5.50 | 350+ | 9 | 4230lg | 3966kg | 3642kg | 3923kg |
| 11 | 4432kg | 4168kg | 3844kg | 4125kg | ||
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
