Cousins of Emneth Ltd

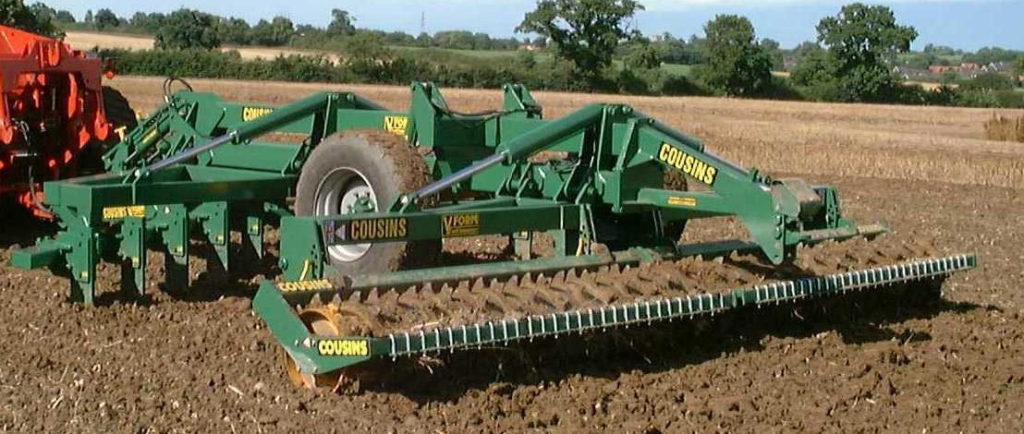

V FormTM - Trailed Folding
Effective configuration of offset tines is proven much more efficient than standard single beam alternatives. The leading tine disturbs the soil for the following tines, achieving a complete movement of soil across the working width of the frame, intensifying the cultivation. The rear attachment disperses the suction from the tines into useful energy for crushing, levelling and depth control. The result is elimination of large clods, good moisture retention and a level surface finish.
All V-Form models can be fitted with Cousins original level lift subsoil legs or ‘Quickfoot’ legs with 1 bolt fixing for minimum down time. A choice of rear attachments is available (please consult Cousins).
Trailed Folding
This model has been designed to satisfy the demands of farmers with high powered tractors who need an implement to make use of this potential. Transport width is 3 metres and there is a choice of rear attachment (Razor Rings or Toothed Packer) for effective crushing, levelling & depth control. Tine protection bars for use during transportation and rear light board is included as standard. Tyre size is 400 x 15.5 x 14 ply. Working depth 510mm (20″) max.
| c/w | |||
|---|---|---|---|
| Working Width | No. of Tines | Razor Rings | Toothed Packer |
| 4.50 300hp | 7 | 4.9t | 4.8t |
| 4.50 300hp | 9 | 5.1t | 5t |
| 5.50 300hp | 7 | 5.4t | 5.2t |
| 5.50 300hp | 9 | 5.6t | 5.4t |
| 6.50 350hp | 9 | 6.1t | 5.8t |
| 6.50 350hp | 11 | 6.3t | 6t |
| 7.5 450hp | 11 | 6.7 | 6.4t |
| 7.5 450hp | 13 | 6.9 | 6.6t |
All prices are recommended retail prices (ex-works) exclusive of VAT. Carriage will be charged on orders dispatched. All prices are subject to change.
